4B Series

High Fuel Efficiency: 20% fewer oil consumption than other competitive products.

The Turbocharger With Wastegated Design: Optimizes operation across the torque curve resulting in excellent low-end torque.

Compacted Yet Durable And Dependable Engine: 4B series engine contains up to 40% fewer parts than competitive engines in its class.This results in a better power-to-weight ration,a less chance of failure and lower repair cost.
Advanced design and manufacturing: Make the engine delivers superior performance and lower cost than competitive engines.

Excellent cold start performance: Optional assistant cold starter with improved 6KW starter and intake air heater.

Excellent performance and advantage: Adopt advanced design to achieve higher horsepower and lower weight,horsepower per liter reached 24.9 KW/L.

Engine model 4BTAA3.9-C130  cummins engine 4BTA3.9-C130
Engine type 4 cylinders in line
Displacement 3.9L
Rated Power 97kW/130HP@2500rpm
Peak Torque 510N.m @1400rpm
Emission Standard Euro II

Engine model 4BTAA3.9-C115  cummins engine 4BTAA3.9-C115
Engine type 4 cylinders in line
Displacement 3.9L
Rated Power 85kW/115HP@2200rpm
Peak Torque 530N.m @1400rpm
Emission Standard Euro II

Engine model 4BTAA3.9-C125  cummins engine 4BTAA3.9-C125
Engine type 4 cylinders in line
Displacement 3.9L
Rated Power 93kW/125HP@2200rpm
Peak Torque 475N.m @1500rpm
Emission Standard Euro II

Engine model 4BTAA3.9-C110  cummins engine 4BTAA3.9-C110
Engine type 4 cylinders in line
Displacement 3.9L
Rated Power 82kW/110HP@2200rpm
Peak Torque 480N.m @1400rpm
Emission Standard Euro II

Engine model 4BTAA3.9-C100  cummins engine 4BTAA3.9-C100
Engine type 4 cylinders in line
Displacement 3.9L
Rated Power 74kW/100HP@2200rpm
Peak Torque 400N.m @1500rpm
Emission Standard Euro II

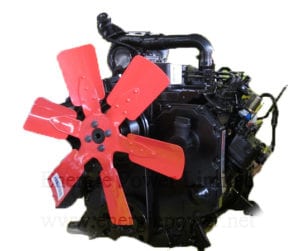

Engine model 4BTAA3.9-C80  cummins engine 4BTAA3.9-C80
Engine type 4 cylinders in line
Displacement 3.9L
Rated Power 60kW/80HP@2200rpm
Peak Torque 370N.m @1300rpm
Emission Standard Euro II

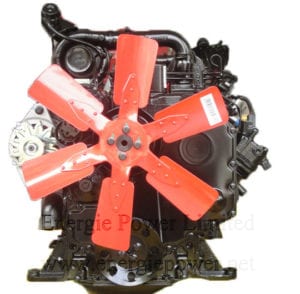

Engine model 4BTA3.9-C130  cummins engine 4BTA3.9-C130
Engine type 4 cylinders in line
Displacement 3.9L
Rated Power 97kW/130HP@2200rpm
Peak Torque 475N.m @1500rpm
Emission Standard Euro I

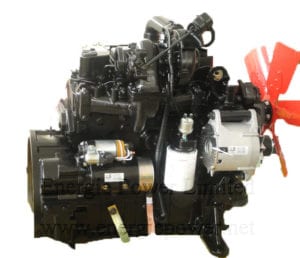

Engine model 4BTA3.9-C125  cummins engine 4BTA3.9-C125
Engine type 4 cylinders in line
Displacement 3.9L
Rated Power 93kW/125HP@2200rpm
Peak Torque 475N.m @1500rpm
Emission Standard Euro I

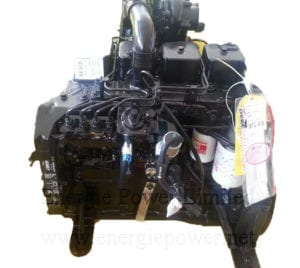

Engine model 4BTA3.9-C120  cummins engine 4BTA3.9-C120
Engine type 4 cylinders in line
Displacement 3.9L
Rated Power 90kW/120HP@2400rpm
Peak Torque 480N.m @1500rpm
Emission Standard Euro I

Engine model 4BTA3.9-C100  cummins engine 4BTA3.9-C100
Engine type 4 cylinders in line
Displacement 3.9L
Rated Power 74kW/100HP@2200rpm
Peak Torque 410N.m @1500rpm
Emission Standard Euro I
