6C Series

High Fuel Efficiency: 20% fewer oil consumption than other competitive products.

The Durability And Compact Dimensions: Keep maintenance costs to a minimum.

The Design Of Dual Ni-Resist Pistons And Greater Main Bearing Area: Contribute directly to longer engine life and unmatched durability.
Advanced design and manufacturing: Make the engine delivers superior performance and lower cost than competitive engines.

Excellent cold start performance: With improved 7.8 KW starter and intake air heater.

Excellent performance and advantage: Adopt advanced design to achieve higher horsepower and lower weight,horsepower per liter reached 23.0 KW/L.

Engine model 6CTAA8.3-C260
Engine type 6 cylinders in line
Displacement 8.3 L
Rated Power (KW@RPM) 194 kW/260HP @ 2200rpm
Peak Torque(Nm@RPM) 1100N.m @ 1400 rpm
Emission Standard Euro 2

Engine model 6CTAA8.3-C215
Engine type 6 cylinders in line
Displacement 8.3 L
Rated Power (KW@RPM) 160 kW/215HP @ 2200rpm
Peak Torque(Nm@RPM) 980 N.m @ 1500 rpm
Emission Standard Euro 2

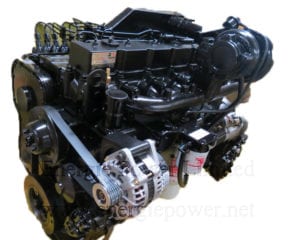

Engine model 6CTA8.3-C260  cummins engine 6CTA8.3-C260
Engine type 6 cylinders in line
Displacement 8.3 L
Rated Power (KW@RPM) 194 kW/260HP @ 2200rpm
Peak Torque(Nm@RPM) 1135 N.m @ 1500 rpm
Emission Standard Euro I

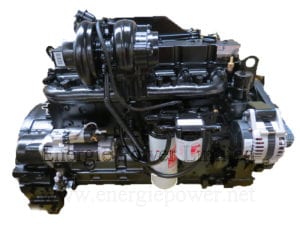

Engine model 6CTA8.3-C240  cummins engine 6CTA8.3-C240
Engine type 6 cylinders in line
Displacement 8.3 L
Rated Power (KW@RPM) 179 kW/240HP @ 2200rpm
Peak Torque(Nm@RPM) 1028N.m @ 1500 rpm
Emission Standard Euro I

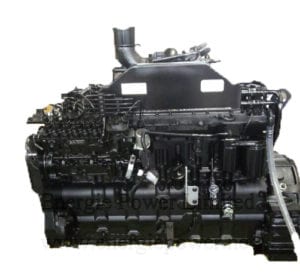

Engine model 6CTA8.3-C230  cummins engine 6CTA8.3-C230
Engine type 6 cylinders in line
Displacement 8.3 L
Rated Power (KW@RPM) 172 kW/230HP @ 2200rpm
Peak Torque(Nm@RPM) 1003N.m @ 1500 rpm
Emission Standard Euro I

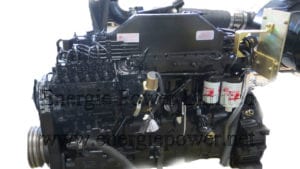

Engine model 6CTA8.3-C215  cummins engine 6CTA8.3-C215
Engine type 6 cylinders in line
Displacement 8.3 L
Rated Power (KW@RPM) 160kW/215HP @ 2200rpm
Peak Torque(Nm@RPM) 880N.m @ 1500 rpm
Emission Standard Euro I

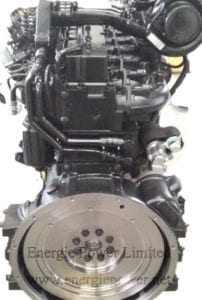

Engine model 6CTA8.3-C205  cummins engine 6CTA8.3-C205
Engine type 6 cylinders in line
Displacement 8.3 L
Rated Power (KW@RPM) 151 kW/205 HP @ 1850rpm
Peak Torque(Nm@RPM) 900 N.m @ 1400 rpm
Emission Standard Euro I

Engine model 6CTA8.3-C195 cummins engine 6CTA8.3-C195
Engine type 6 cylinders in line
Displacement 8.3 L
Rated Power (KW@RPM) 145 kW/195 HP@ 1900rpm
Peak Torque(Nm@RPM) 820 N.m @ 1500 rpm
Emission Standard Euro I

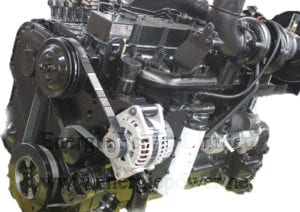

Engine model 6CTA8.3-C145 cummins engine 6CTA8.3-C145
Engine type 6 cylinders in line
Displacement 8.3 L
Rated Power (KW@RPM) 108 kW/145HP @ 1900rpm
Peak Torque(Nm@RPM) 672N.m @ 1300 rpm
Emission Standard Euro I

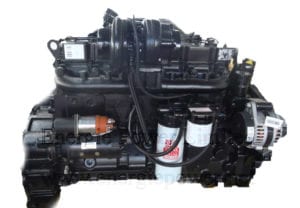

Engine model 6CTA8.3-C180  cummins engine 6CTA8.3-C180
Engine type 6 cylinders in line
Displacement 8.3 L
Rated Power (KW@RPM) 134 kW/180 HP @ 2000rpm
Peak Torque(Nm@RPM) 837 N.m @ 1400 rpm
Emission Standard Euro I
