B Series

Performance of Cummins B serie engines for Automotive:

Advanced design and manufacturing make the engine delivers superior performance and lower cost than competitive engines.

As compacted yet durable and dependable engine,B series engine contains up to 40% fewer parts than competitive engines in its class. This results in a better power-to-weight ration, a less chance of failure and lower repair cost.

The turbocharger with wastegated design optimizes operation across the torque curve resulting in excellent low-end torque.

Meet Euro II emission regulation.

All the power ranges of Cummins B series:

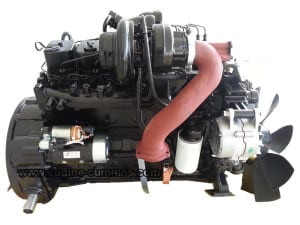

Engine model B190-33  Cummins engine B190 33
Engine type 6 cylinders in line
Displacement 5.9L
Rated Power (KW@RPM) 140 kW(190 HP)@2500rpm
Peak Torque(Nm@RPM) 640 N.m @1500rpm
Emission Standard Euro 3

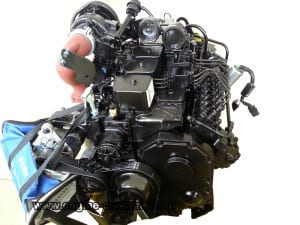

Engine model B210-33 Cummins engine B210 33
Engine type 6 cylinders in line
Displacement 5.9L
Rated Power (KW@RPM) 155kW(210 HP)@2500rpm
Peak Torque(Nm@RPM) 700 N.m @1500rpm
Emission Standard Euro 3


Engine model B160-33  cummins engie B180 33
Engine type 6 cylinders in line
Displacement 5.9L
Rated Power (KW@RPM) 132 kW(180 HP)@2500rpm
Peak Torque(Nm@RPM) 610 N.m @1500rpm
Emission Standard Euro 3

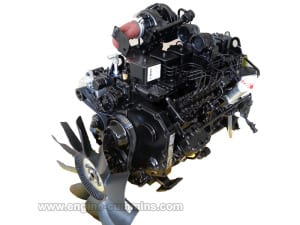

Engine model B170-33  cummins engine B170 33
Engine type 6 cylinders in line
Displacement 5.9L
Rated Power (KW@RPM) 125 kW(170 HP)@2500rpm
Peak Torque(Nm@RPM) 560 N.m @1300rpm
Emission Standard Euro 3

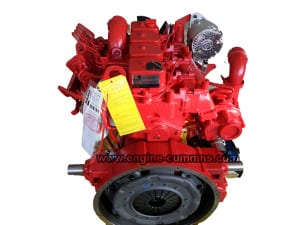

Engine model B160-33  cummins engie B160 33
Engine type 6 cylinders in line
Displacement 5.9L
Rated Power (KW@RPM) 125 kW(160 HP)@2500rpm
Peak Torque(Nm@RPM) 500 N.m @1400rpm
Emission Standard Euro 3

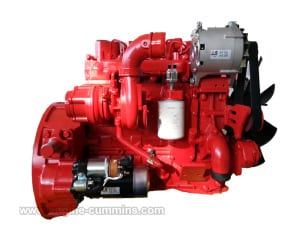

Engine model B140-33  cummins engine B140 33
Engine type 4 cylinders in line
Displacement 3.9L
Rated Power (KW@RPM) 103 kW(140 HP)@2800rpm
Peak Torque(Nm@RPM) 502 N.m @1500rpm
Emission Standard Euro 2

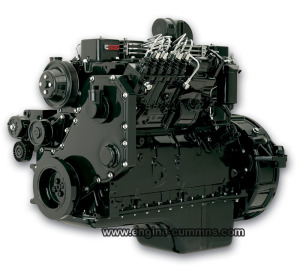

Engine model B125-33 cummins engine B125 33
Engine type 4 cylinders in line
Displacement 3.9L
Rated Power(KW/HP@RPM) 92Kw/125Hp@2800
Peak Torque(Nm@RPM) 410/1500
Emission Standard Euro 2
