C Series

Performance of Cummins C serie engines for Automotive:

Advanced design and manufacturing make the engine delivers superior performance and lower cost than competitive engines.

As compacted yet durable and dependable engine,C series engine contains up to 25% fewer parts than competitive engines in its class. This results in a better power-to-weight ration, a less chance of failure and lower repair cost.

The turbocharger with wastegated design optimizes operation across the torque curve resulting in excellent low- end torque.

The design of dual ni-resist pistons and greater main bearing area contribute directly to longer engine life and unmatched durability.

Meet Euro II emission regulations.

Engine model C300-20  Cummins C300 20
Engine type 6 cylinders in line
Displacement 8.3L
Rated Power 221kW(300HP)@2200rpm
Peak Torque 1125 N.m @1200rpm
Emission Standard Euro 2

Engine model C300-33 cummins engine C300 33
Engine type 6 cylinders in line
Displacement 8.3L
Rated Power 221kW(300HP)@2200rpm
Peak Torque 1125 N.m @1200rpm
Emission Standard Euro 3

Engine model C245-20  cummins engine C245 20
Engine type 6 cylinders in line
Displacement 8.3L
Rated Power (KW@RPM) 180kW(245 HP)@2200rpm
Peak Torque 1024 N.m @1400rpm
Emission Standard Euro 2


Engine model C280-20  cummins engine C280 20
Engine type 6 cylinders in line
Displacement 8.3L
Rated Power 206kW(280HP)@2200rpm
Peak Torque 1125 N.m @1200rpm
Emission Standard Euro 2

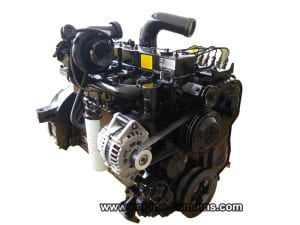

Engine model C260-20  cummins engine C260 20
Engine type 6 cylinders in line
Displacement 8.3L
Rated Power 191kW(260HP)@2200rpm
Peak Torque 1024 N.m @1400rpm
Emission Standard Euro 2

Engine model C230-20  cummins engine C230 20
Engine type 6 cylinders in line
Displacement 8.3L
Rated Power (KW@RPM) 170kW(230 HP)@2200rpm
Peak Torque 861 N.m @1300rpm
Emission Standard Euro 2

Engine model C260-33  cummins engine C260 33
Engine type 6 cylinders in line
Displacement 8.3L
Rated Power 191kW(260HP)@2200rpm
Peak Torque 1024 N.m @1400rpm
Emission Standard Euro 3

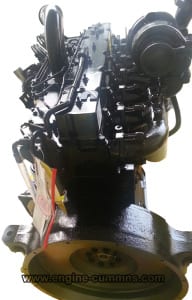

Engine model C280-33  cummins engine C280 33
Engine type 6 cylinders in line
Displacement 8.3L
Rated Power 206kW(280HP)@2200rpm
Peak Torque 1125 N.m @1200rpm
Emission Standard Euro 3

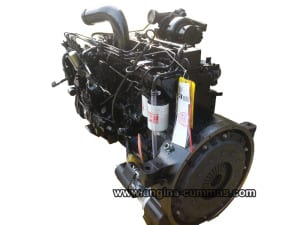

Engine model C245-33  cummins engine C245 33
Engine type 6 cylinders in line
Displacement 8.3L
Rated Power 180kW(245 HP)@2200rpm
Peak Torque 1024 N.m @1400rpm
Emission Standard Euro 3

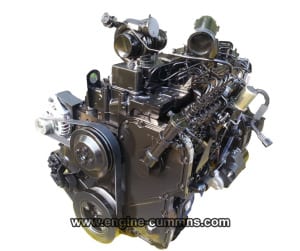

Engine model C230-33 cummins engine C230 33
Engine type 6 cylinders in line
Displacement 8.3L
Rated Power 170kW(230 HP)@2200rpm
Peak Torque 861 N.m @1300rpm
Emission Standard Euro 3
