Cummins Generator

Home/Cummins Generator

Why choose us ?

  • EPL have cooperation with Cummins and Stamdford for years, which allow us to get the genuine engine and alternator with advantageous price and finally be able to quote a competitive price

  • Maintenance and overhaul support guaranteed, as our main business also involved in distributing Genuine Cummins and Weichai parts.

  • High cost performence generator  covering power range from 20KW up to 2400KW,with different brands optionable like Cummins , MTU, Perkins, Volve, Deutz, Weichai, Shangchai, Yangdong etc.

  • Freely cusomization, OEM, ODM, Assembling maritime generator with Landbased G-drive engine, no MOQ required.

Send Enquiry
MAIN Features

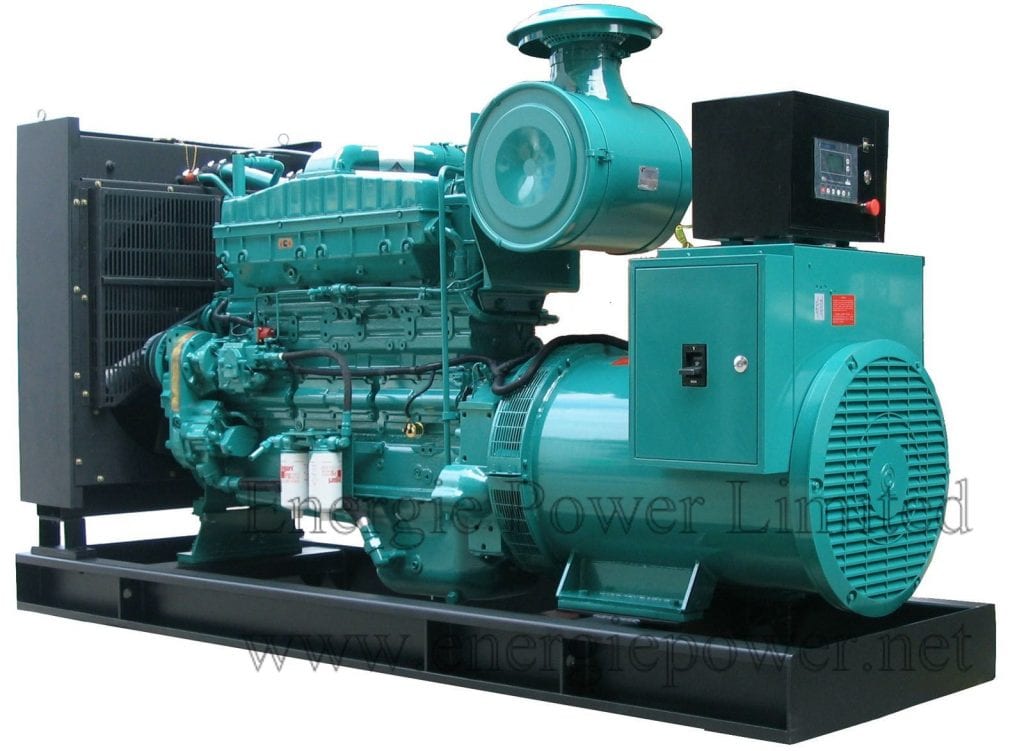

Cummins Generators with Rated Power from 25kva-1600kva, designed for continious running or back-up running in field of Mining/Power Station/Building/Oil/Telecom/Train/Factory etc. 50Hz or 60Hz are available for Genset, Powered by Cenuine Cummins Engine, equipped with Deepsea Controller and Cummins Stamford/Leroy Somer/Marathon Alternator. As per customers’ requirement, we can supply open type Genset/with Soundproof Cabinet/with Parallel Cabinet etc.

  • 12V/24V DC starter motor and battery system
  • Brushless, Self-excited, IP22, insulation class H alternator
  • Self enclosed water-cooling system.
  • Optional 8-hours operation base tank
  • All generating sets have gone through rigorous testing before delivery, including 50% load,75%load, 100% load, 110% load,and all protection function (over-speed stop, high water temp,low oil pressure, battery charging failure, emergency stop
OutPut Power
  • 3 Phases 4 wires/ 3 phases 3 wires
  • Phase Voltage: 220V
  • Line Voltage: 380V
  • Frequency: 50HZ
  • Engine Speed: 1500RPM
Alternator Available
  • Stamford
  • Marathon
  • Leroy Somer
Control Panel Available
  • Deepsea
  • Smartgen
ModelRated Power(kw)Standby Power(kw)Cummins Engine ModelKW Max PowerCylindersConsumption(full load L/Hr)Stamford Alternator ModelDimension L*W*H(mm)Weight(kg)
EP20GFC20224B3.9-G22746PI144E1950*800*960700
EP30GFC30334BT3.9-G24049.7PI144J1950*800*960750
EP45GFC45504BTA3.9-G255415UCI224E1950*800*960800
EP80GFC80886BT5.9-G2102619.8UCI274C2100*800*13501010
EP90GFC901006BTA5.9-G2120624UCI274D2100*800*13501200
EP110GFC1101206BTAA5.9-G2132627.4UCI274E2100*800*13501300
EP140GFC1401606CTA8.3.-G2180635UCI274G2420*870*15271850
EP160GFC1601806CTAA8.3.-G2204642.4UCI274H1950*800*17301900
EP200GFC2002206LTAA8.9-G2245648UCDI274K2500*900*17502100
EP250GFC250280MTA11-G3310666.5HCI44ES2980*1050*16442330
EP280GFC280315NTA855-G2A343670.7HCI444E3020*1100*19003150
EP330GFC330360NTA855-G7A377682HCI544C3400*990*17773290
EP360GFC360400KTA19-G3448690HCI544C3410*1260*19804100
EP400GFC400440KTA19-G45036101.2HCI544D3410*1260*19804150
EP450GFC450500KTAA19-G55556128.3HCI544E3650*1570*20504500
EP500GFC500550KTAA19-G6a6106140.6HCI544FS3700*1570*20804550
EP600GFC600660KTA38-G273112161.8LVI634C4500*2060*24306850
EP7300GFC730800KTA38-G2A89512180.8LVI634E4500*2060*24307000
EP800GFC800880KTA38-G597012220LVI634F4750*1850*24307500
EP900GFC9001000KTA38-G9108912230LVI634G4750*1850*24308000
EP1000GFC10001100KTA50-G3122716254LVI634G5200*1750*238010300
EP1200GFC12001320KTA50-G8142916289PI734C5600*2000*240010900
