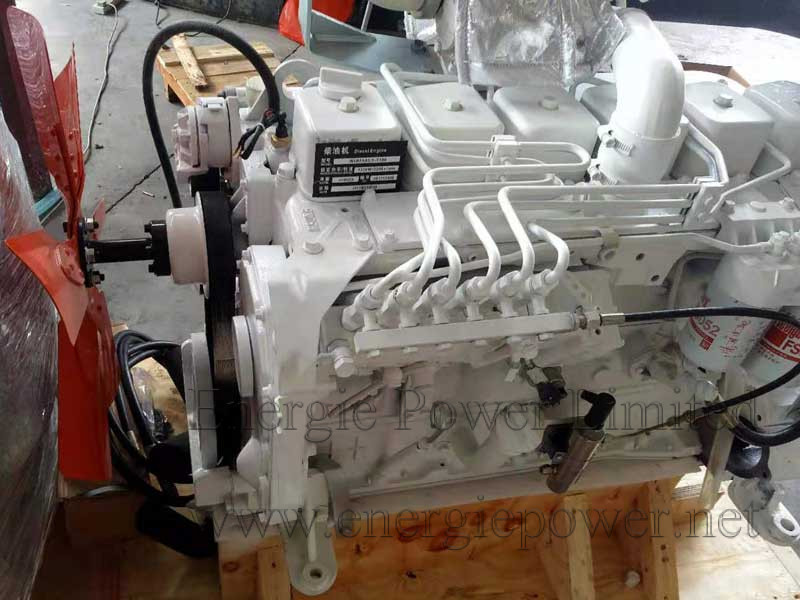

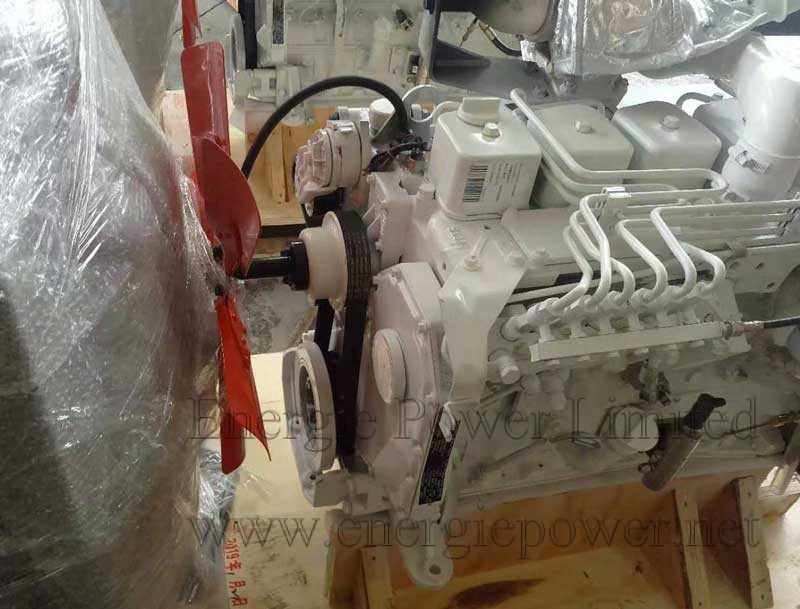

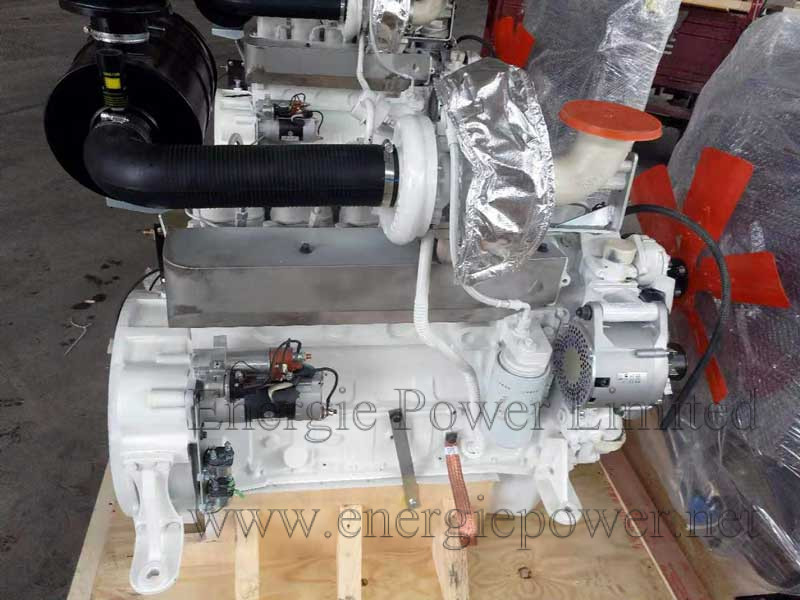

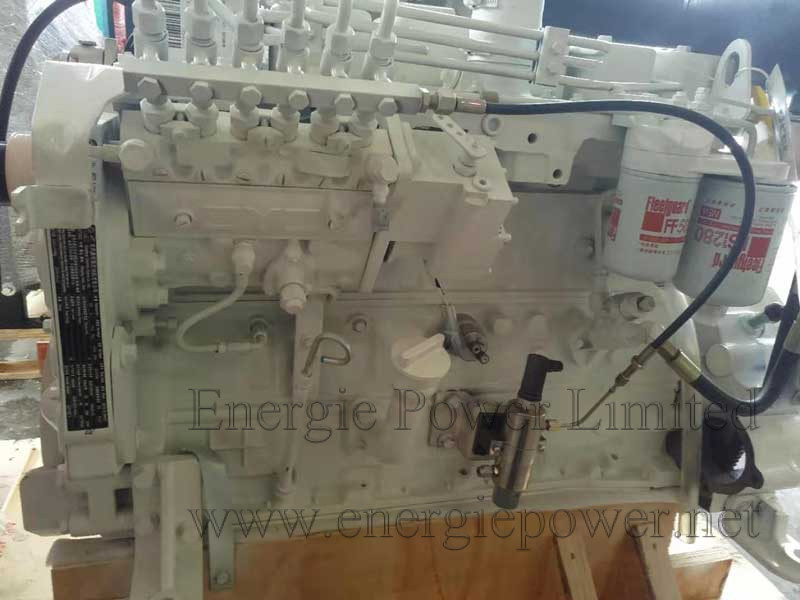

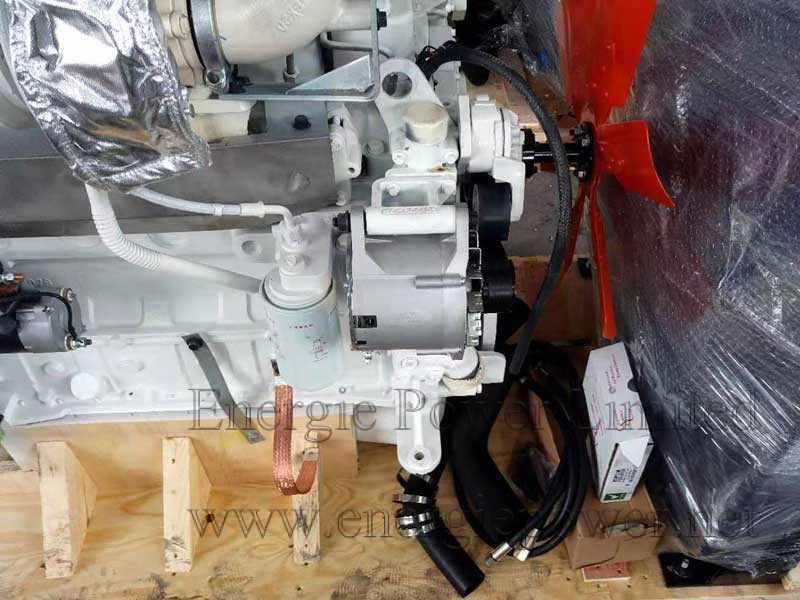

6BT5.9-GM100

New Cummins Diesel Engines

Engine Brand Cummins
Engine Models 6BT5.9-GM100
Rated Power 100 kW/134HP @ 1800rpm / 110 kW/147HP @ 1800rpm(Standby Power)
Peak Torque
Fuel Pumping System BYC A Pump/GAC Governor
Emission Standard Tier/Euro II
Tail Gas Retreatment
Cummins diesel engine 6BT5.9-GM100 technique specification
Egnine Cylinder Type 6 Cylinders, Inline
Bore and Stroke 102mm * 102mm
Compression Ratio 17.3: 1
Displacement Type 5.9L
Fuel Consumption
Air Intake Method Type Turbocharged & Air-Air Inter-Cooled
Engine Size 867mm*544mm*988mm
Weight Net 453 Kgs
Cummins diesel engine 6BT5.9-GM100 trade information
Warranty Time Basically 1 year or 1500 Hours, please check our warranty terms
Delivary Port Shanghai or any China port
Leading Time 15 working days
Trade Termes FOB/CIF/CNP
Payement termes T/T, L/C

Certificate of Conformity, Operation and Maintenance Manual, Notice and nameplate etc.

Additional files for automobile engine: Rubbing paper for license plate application.

Additional files for marine engine: Certificate CCS/IMO

Yes, normally all the genuine parts are under the warranty from the brand owner, in some cases, we offer a warranty under our own company, but this warranty covers only the goods, not the service.
